HIGH-SPEED
INTERCEPTOR DRONE

TACTICAL UAV DEFENSE SYSTEM

Interceptor Drone

MISSION PROFILE

Autonomous and pilot-operated interceptor drone designed for rapid deployment against hostile UAV threats and low-altitude rotary aircraft. Field-packable system with beyond line-of-sight (BLOS) capabilities for extended operational range.

PERFORMANCE SPECIFICATION
Maximum Speed 200+ mph
Service Ceiling 25,000 ft AGL
Payload Capacity 4.5 lbs
Platform Weight ~10 lbs
Propulsion Electric Quadcopter (4-motor)
Flight Mode Auto-level takeoff / Rate mode flight

SYSTEM CAPABILITIES

PAYLOAD SYSTEM

  • Modular canister design: 160mm × 60mm
  • 4.5 lb capacity for mission-specific ordinance
  • Quick-release mechanism for rapid payload changes
  • Single-use deployment optimized for cost-effectiveness

CONTROL & COMMUNICATION

  • ExpressLRS long-range radio link for BLOS operations
  • FPV goggles with integrated HUD for pilot situational awareness
  • Dedicated controller with precision inputs
  • Onboard long-range camera system with real-time transmission

AI & AUTONOMY OPTIONS

CONFIGURABLE BASED ON MISSION REQUIREMENTS
  • Base System: Manual pilot control with stabilization assistance
  • Enhanced System: AntBrain.ai integration with FLIR thermal tracking
  • Advanced System: Custom SBC with full onboard AI for autonomous target acquisition
  • Automated target tracking and pursuit capabilities
  • Configurable autonomy levels based on operational budget

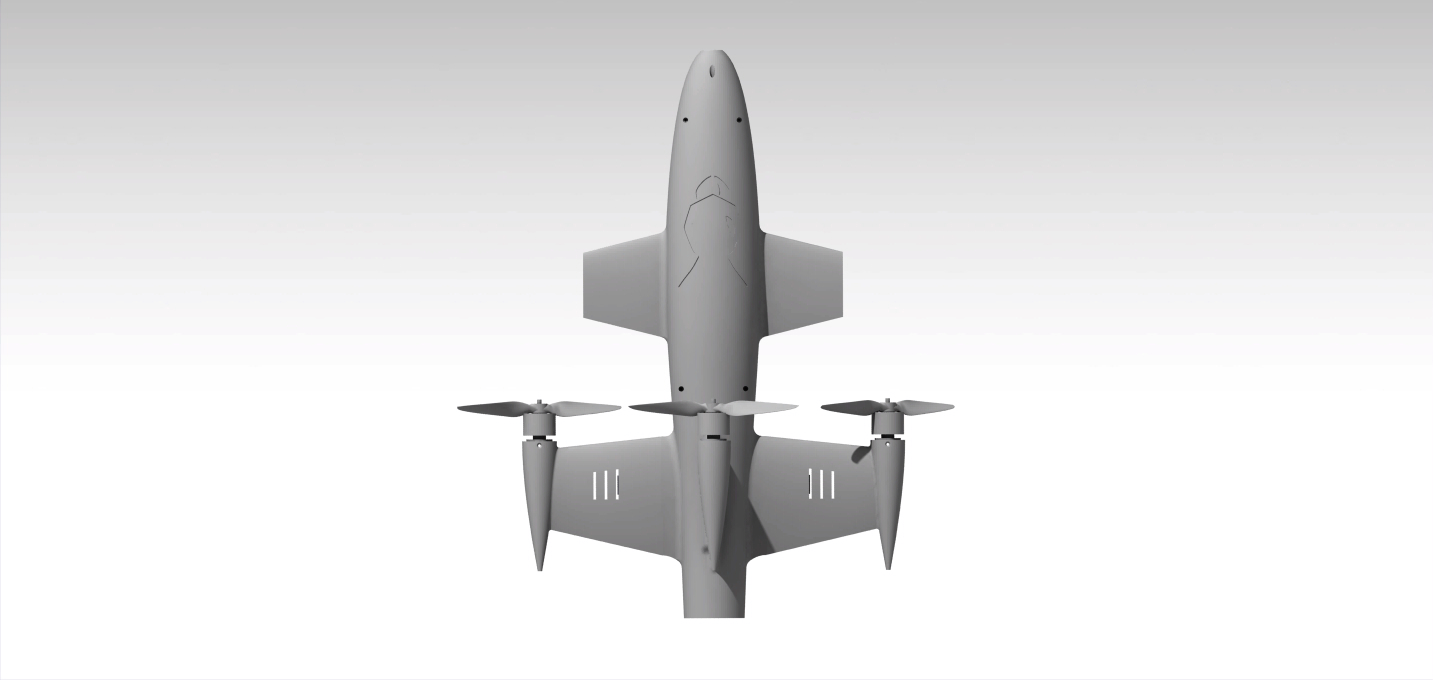

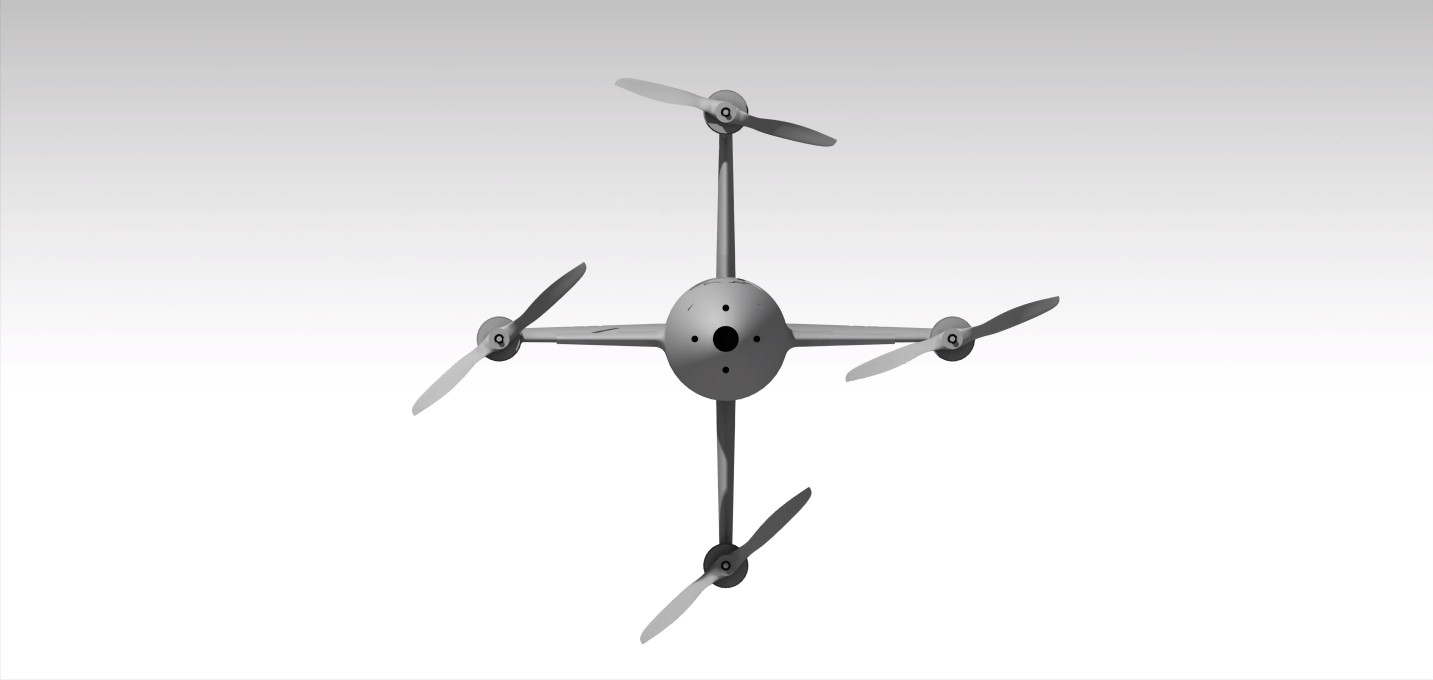

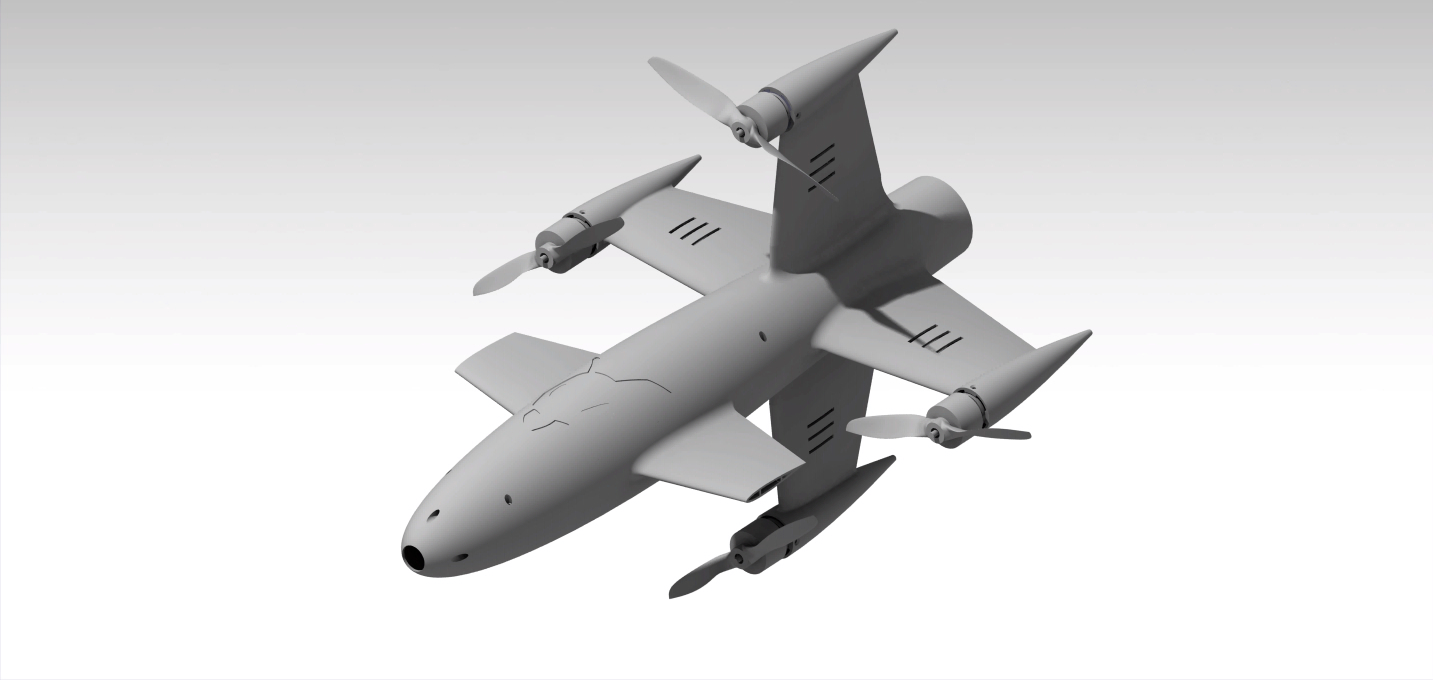

Drone Front View Drone Quad View Advanced SBC

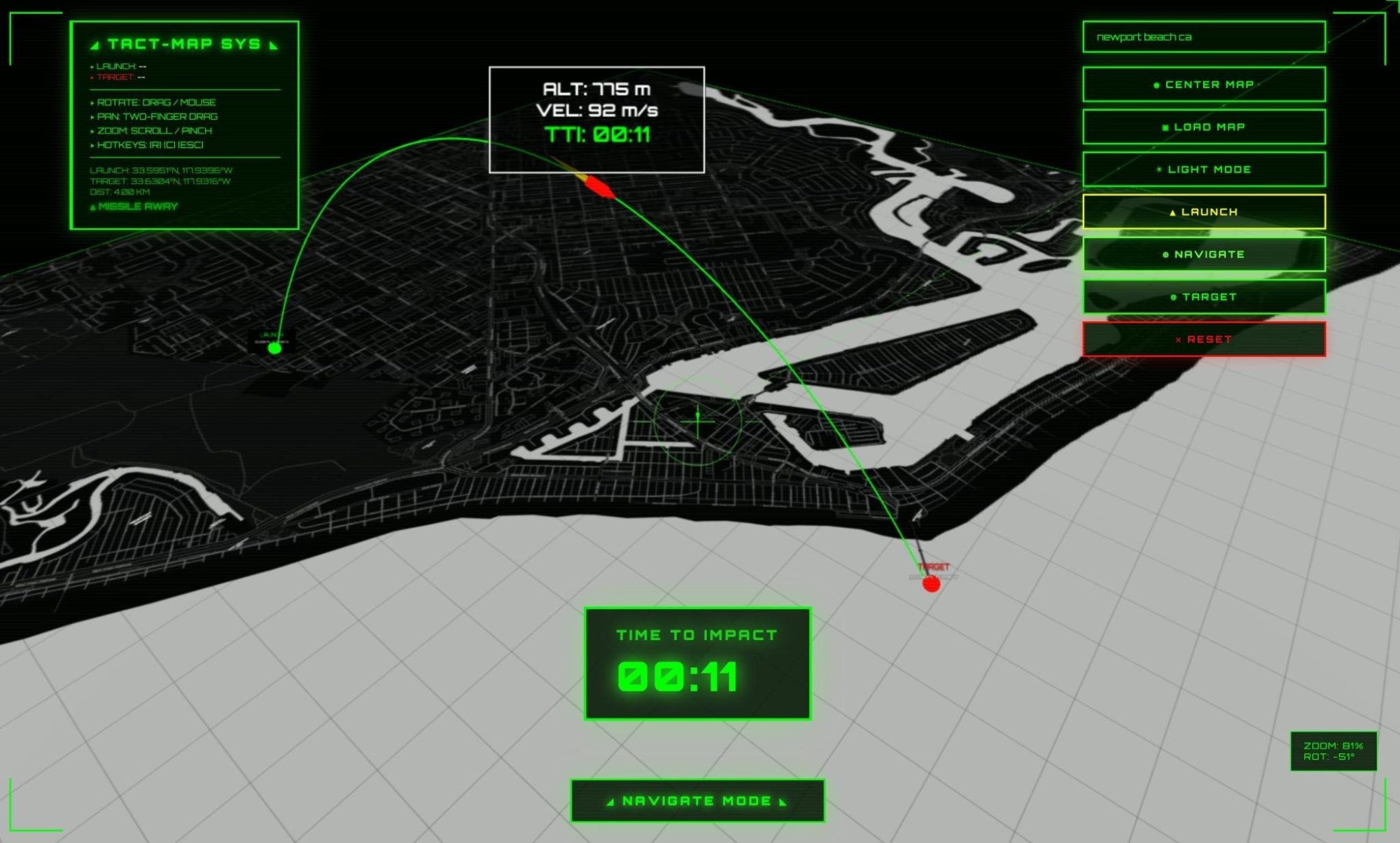

MISSION PLANNING & GROUND CONTROL

Mission Planning Interface
  • Tablet-based ground control station for field deployment
  • Point-and-click target designation with instant trajectory calculation
  • Real-time telemetry: altitude, velocity, battery, GPS position
  • Live flight path visualization with time-to-impact countdown
  • One-touch mission abort and return-to-home capability
  • Encrypted command and control datalink
  • Intuitive interface optimized for rapid deployment under combat conditions
  • Mission recording and post-flight analysis

OPERATIONAL FEATURES

FEATURE BENEFIT
Field Packable Mission-configurable payload integration at point of deployment
Quick Charge System Minimal downtime between sorties
Electric Propulsion Reliable and field-serviceable at forward operating locations
Modular Configuration Customizable for mission and budget
BLOS Capability Extended operational radius beyond visual range

THREAT ENGAGEMENT MATRIX

The interceptor drone is designed to engage a broad spectrum of aerial threats commonly deployed in modern conflict zones. Target acquisition and engagement profiles include:

PLATFORM NAME CATEGORY
Mi-8/17 HipHelicopter
Mi-28 HavocHelicopter
Shahed-136/Geran-2Loitering Munition
Shahed-131/Geran-1Loitering Munition
Shahed-238/Geran-3Loitering Munition
Leleka-100Fixed-Wing ISR
Leleka-LRFixed-Wing ISR
A1-SM FuriaFixed-Wing ISR
A1-CMX Furia (Armed)Fixed-Wing ISR
Orlan-10Fixed-Wing ISR
Supercam S350Fixed-Wing ISR
ZALA 421-16E5Fixed-Wing ISR
ZALA Z-16Fixed-Wing ISR
ZALA Z-20Fixed-Wing ISR
Eleron-3SVFixed-Wing ISR
Orion/InokhodetsMALE UCAV
Inokhodets-RU SiriusMALE UCAV
Forpost-RMALE UCAV
ZALA Lancet-3Loitering Munition
ZALA Lancet-1Loitering Munition
ZALA KUB-BLALoitering Munition
DJI Mavic 3Commercial Quad
DJI Mavic 3TCommercial Quad
DJI Matrice 300Commercial Hex
Vampire/Baba YagaHeavy Bomber
FPV Kamikaze (Generic)FPV Drone
Molniya-2 (Russian FPV)FPV Drone

ENGAGEMENT STRATEGY

  • Helicopters: High-speed interception at altitude with kinetic payload deployment
  • Fixed-Wing ISR: Pursuit and engagement during surveillance patterns
  • Loitering Munitions: Rapid response intercept before target acquisition
  • MALE UCAVs: Long-range tracking and high-altitude engagement
  • Commercial/FPV Drones: Point defense and swarm interdiction capabilities

Target list based on current threat assessment in Ukraine theater of operations. System capabilities adaptable to evolving threat profiles and operational requirements.
